Hydraulic Type

TB Series

Features & Advantages

  • TB type hydraulic is lever structure, which is available as a single acting spring return
  • It do not need to modify die to fit the clamp, so TB clamp may be used in a wide range of applications
  • The base of the clamp is machined to fit the T-slot on the bolster and slider
Video

Model (TB-xxM)

TB xx M
Hydraulic Clamp Capacity With M：with handle
Without M：standard type

Specification

Model TB-01 TB-02 TB-03 TB-04 TB-06 TB-10 TB-16 TB-25 TB-30 TB-50
Clamp force
(250kg/cm2)		 (tf) 1 1.5 2.4 4 6.3 10 16 25 30 50
Full stroke (mm) 6 10 7 7 8 8 8 9 10 10
Clamping stroke (mm) 3 5 4 4 4 4 4 5 5 5
Extra stroke (mm) 3 5 3 3 4 4 4 4 5 5
Total oil requirement (cm3) 2.7 7.7 9.1 13 24 38.6 71.2 100.5 125 226
E min. (mm) 45 60.7 59 69 82 108 127 152 172 205
G (mm) 7 10 7 7 8 8 10 10 8.5 14
J (mm) 15 18 20 23 30 30 30 32 35 37
K (mm) 75 99 105 129 161 190 230 272 301.5 377
M (mm) 60 81 85 106 131 160 200 240 266.5 340
N (mm) 10 14 14 16 20 20 20 24 23 23
P (mm) 33 44.5 44.5 53 64 78 95 72 85.5 92
R (mm) 43.8 58.4 63.9 73 93.3 104 125 153.6 178 200
S (mm) 20 30 32 40 50 55 60 73 83 100
T (mm) 39.5 49 49.5 60 70 95 117 136 150 179
V min. (mm) 16 17.5 21.5 29.5 29.5 44 61 78 114 147
Oil inlet (Rc) 1/8” 1/8” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 1/4” 3/8"

Recommended T-slot and clamping height "h" dimension (mm)

Model No. a b c d h
TB-01 18 30 12 15 35
TB-02
TB-03 22 37 16 19 40
TB-04
TB-06
TB-10 28 46 23 23 50
TB-16
TB-25 36 56 25 28

Standard System Selection

Injection Molding Machine Capacity (ton) Clamp Control Panel Power Unit
Model Qty. Single side force (ton)
~50 TB-01 8 4 EC-08A BPT-62-LERLERLERLER-0-5-F
~75 TB-02 6
~150 TB-03 9.6
~250 TB-04 16
~350 TB-06 25.2
~550 TB-10 40
~850 TB-16 64
~1300 TB-25 100



Note

  • Clamping stroke and extra stroke are for standard press dies
  • Customized stroke is available on request
  • Specify T-slot dimension (a, b, c, d) and mold height (h) when ordering

Accessories

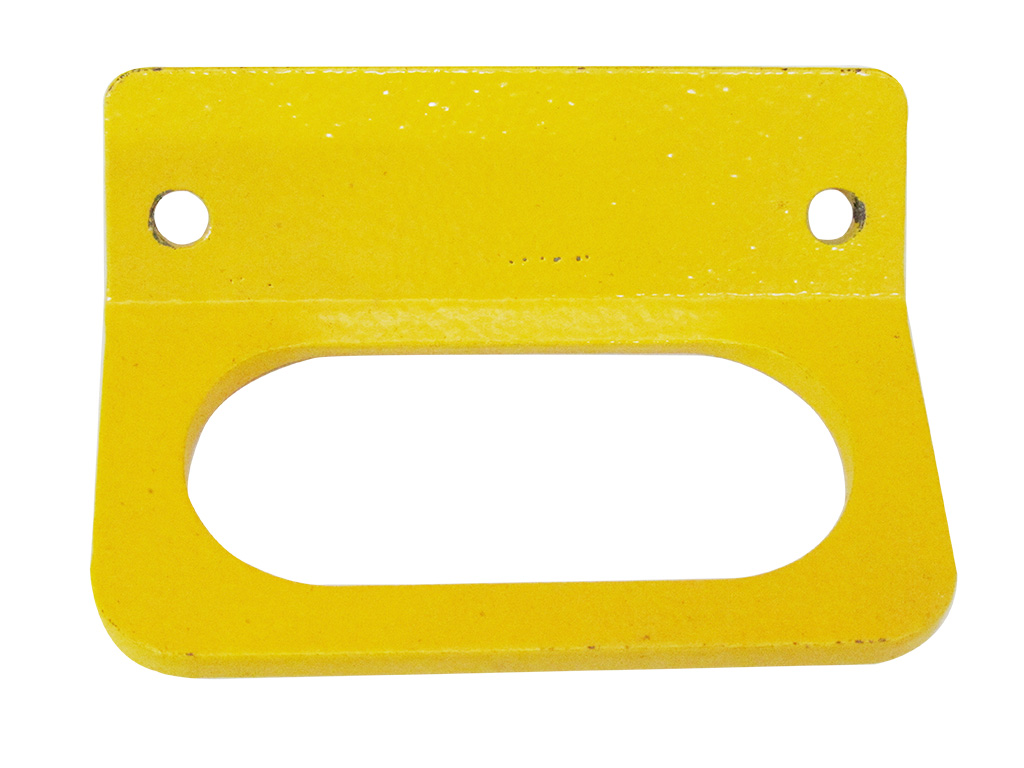

Handle
